Ultimarc UtraStik 360 ENCLOSURE

35.00

Ultimarc UtraStik 360 ENCLOSURE

35.00

This is an enclosure for the UltraStik 360.  It is not the UltraStik device itself

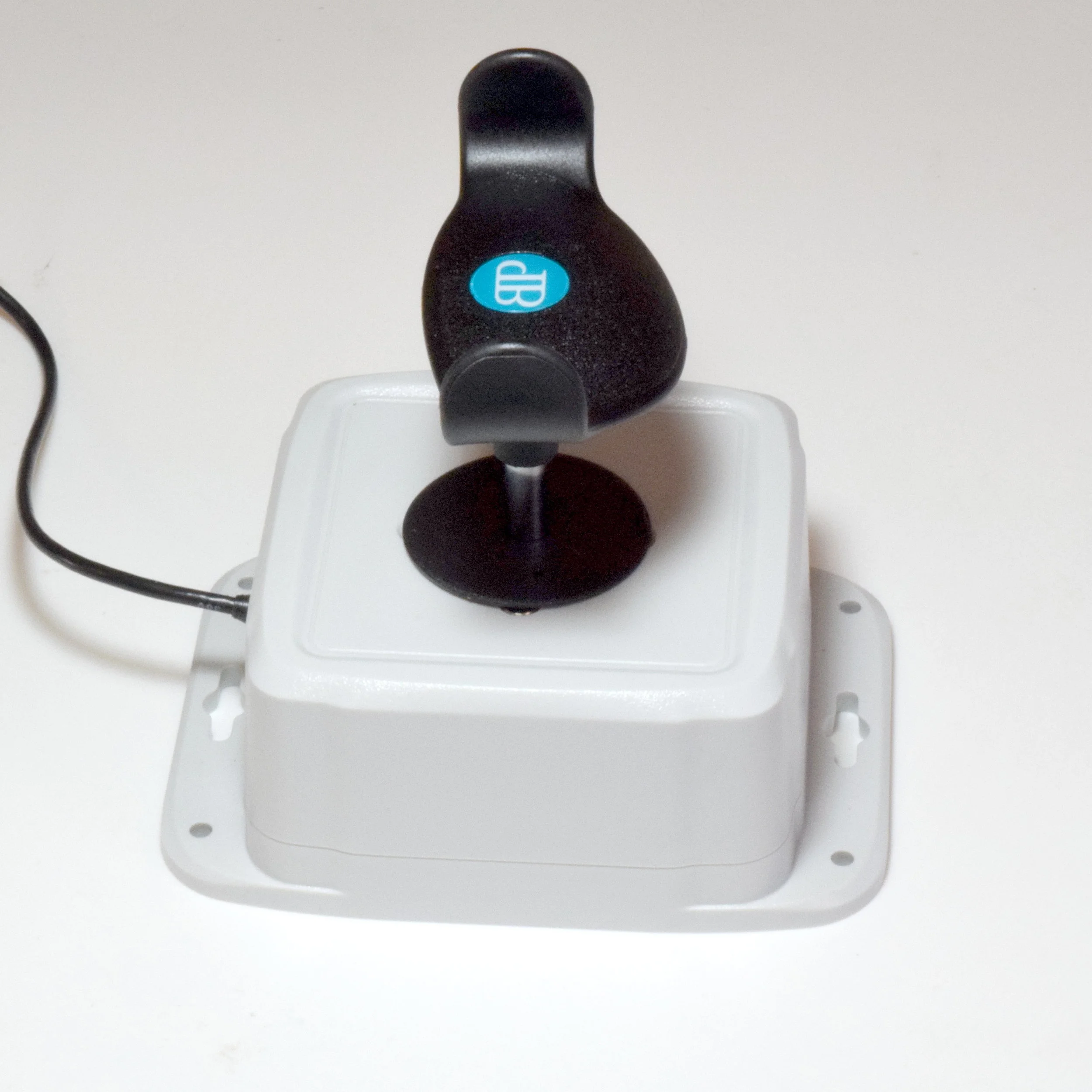

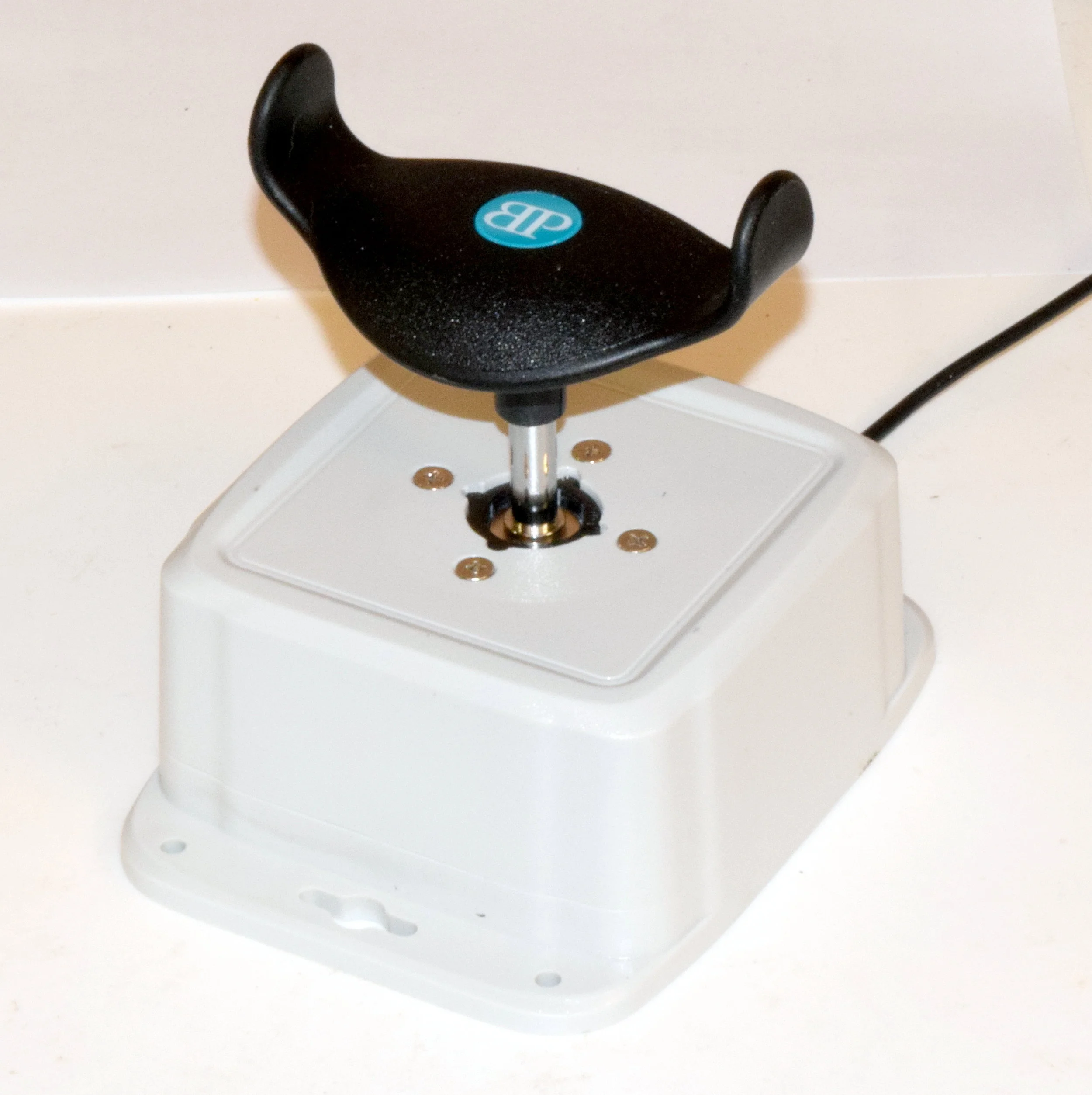

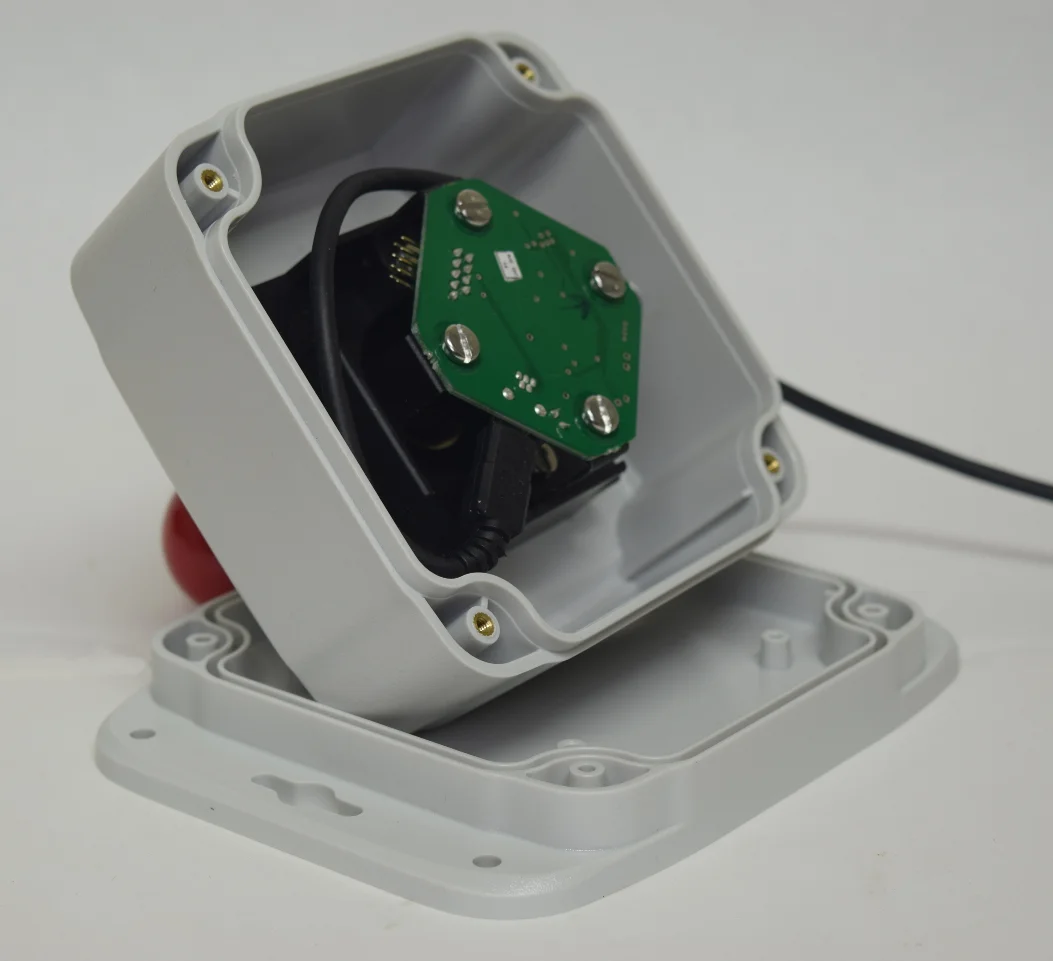

The enclosure is a polycarbonate case, approximately 4.6" square and 2.5" high, with a CNC milled opening for the UltraStik.

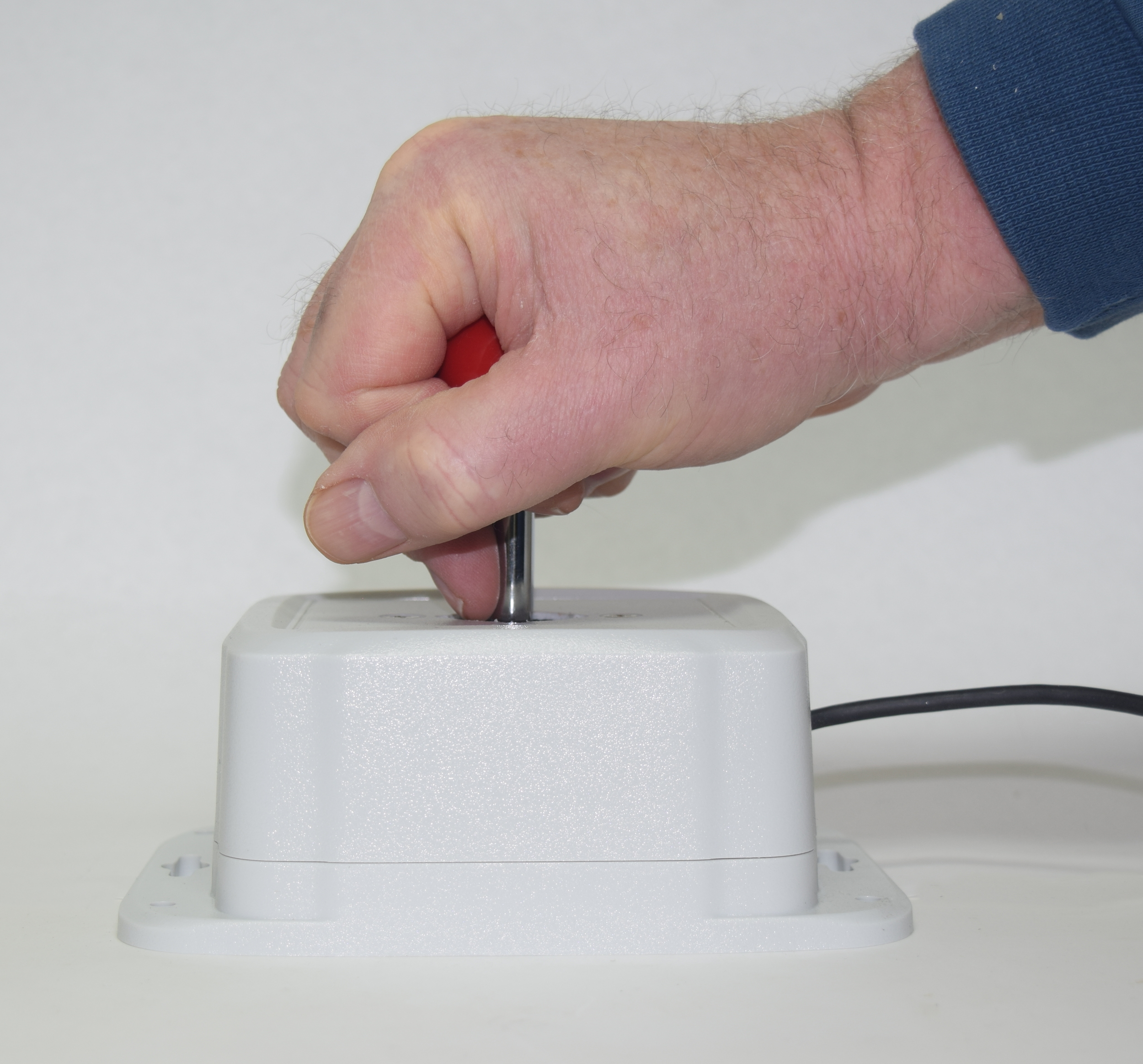

Up to two UltraStik 360's can be used in combination with the QuadStick at the same time.  The XY position of the UltraStiks can be used in a Game Configuration file just like the Mouth Operated Joystick position itself.   This allows a user with some arm movement to map an UltraStik as one of the Analog sticks while the using the mouthpiece as the other.

The UltraStiks and the QuadStick must all be connected over USB to a Windows PC running the QuadStick Manager Program.  The QMP relays the data from the UltraStiks to the QuadStick, where it is used in a game configuration.  The output from the QuadStick can be used by the PC or through a CronusMax, to a game console.  See below for a wiring diagram.

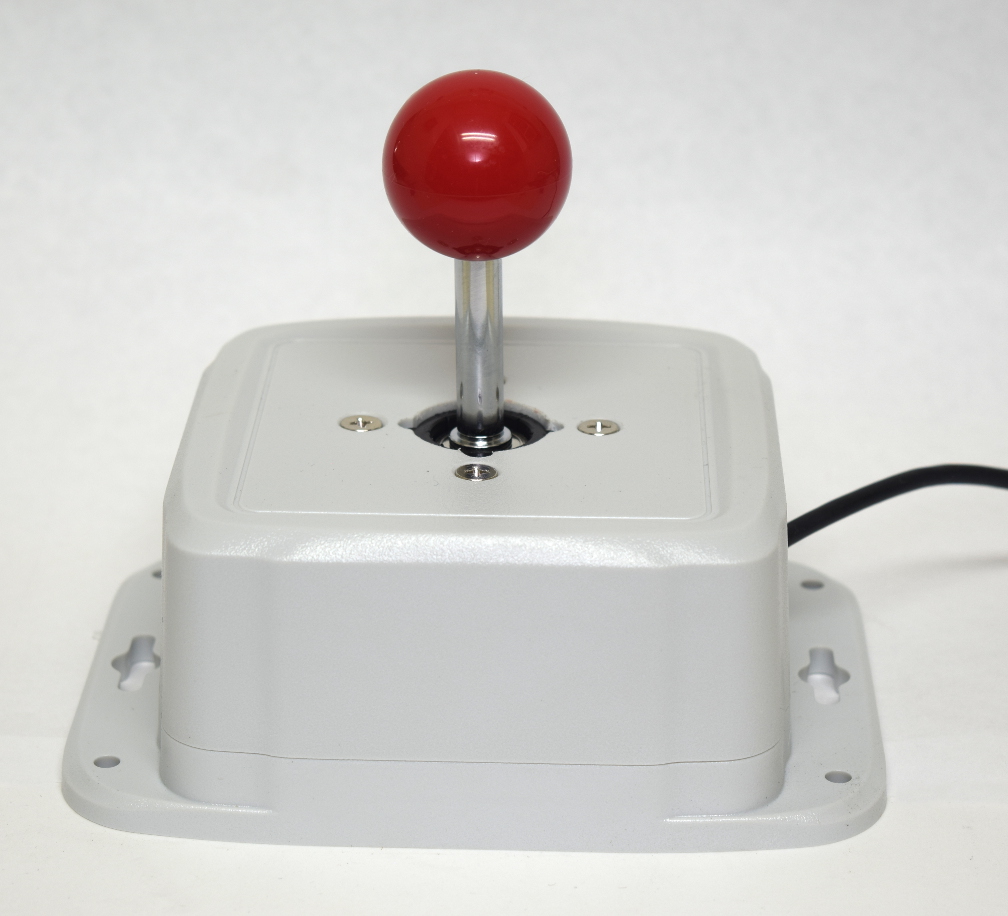

The UltraStik 360 can be ordered from Ultimarc's online store.  They offer two different hand grips, a red ball and a black oval.   The price is currently $59 each.

More Info

Quantity:
Add To Cart

This is an enclosure for the UltraStik 360.  It is not the UltraStik device itself

The enclosure is a polycarbonate case, approximately 4.6" square and 2.5" high, with a CNC milled opening for the UltraStik.

Up to two UltraStik 360's can be used in combination with the QuadStick at the same time.  The XY position of the UltraStiks can be used in a Game Configuration file just like the Mouth Operated Joystick position itself.   This allows a user with some arm movement to map an UltraStik as one of the Analog sticks while the using the mouthpiece as the other.

The UltraStiks and the QuadStick must all be connected over USB to a Windows PC running the QuadStick Manager Program.  The QMP relays the data from the UltraStiks to the QuadStick, where it is used in a game configuration.  The output from the QuadStick can be used by the PC or through a CronusMax, to a game console.  See below for a wiring diagram.

The UltraStik 360 can be ordered from Ultimarc's online store.  They offer two different hand grips, a red ball and a black oval.   The price is currently $59 each.

Wiring block diagram showing how the QuadStick and UltraStiks connect through a PC to a game console.
