QuadStick FPS game controller

QuadStick FPS game controller

from 549.00

The QuadStick FPS is a PS3, PS4 and Nintendo Switch compatible game controller (see below for other consoles).  It uses a larger and more rugged joystick module than the original model QuadStick.  The FPS joystick offers a more definite, centering spring and feel.

Note: The joystick centering springs are selectable when the order is placed. The light centering springs are similar in strength to the Original model. The strong centering springs require more force to move than the original joystick and may not be the best choice for users who have reduced strength in their lips. See below for more details.

The QuadStick comes with two mouthpieces and a USB cable.  Mouthpiece size can be selected when the QuadStick is added to the shopping cart.

The QuadStick mounts using the 1" Size B RAM Mount system.  Select one of the mounting kit options to make a complete system or see the mounting kit descriptions for the parts sources to assemble your own mount.

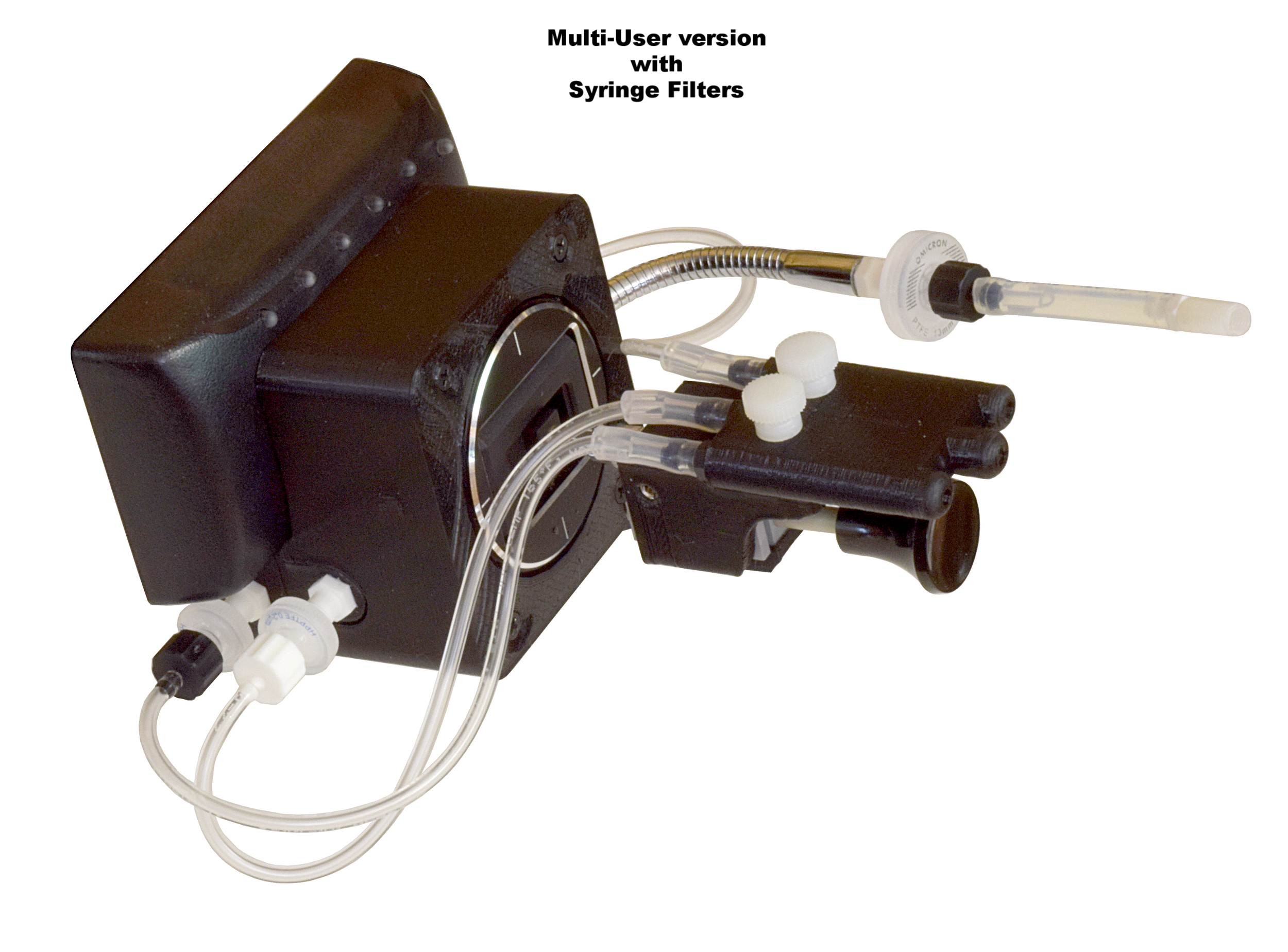

The Multiuser version also includes hydrophobic syringe filters (a total of eight) and a second side tube assembly for $25 extra. Extra mouthpieces, filters & side tubes are available.

Number of users:
Add To Cart

When choosing the centering spring during ordering consider the following:

Strong centering springs:

  1. The Quadstick can be used in any position.

  2. The force required to move the joystick may be tiring for users with limited lip muscle strength.

Light centering springs:

  1. The Quadstick must be positioned with 45 degrees of upright for the mouthpiece to return to center by itself. When placed on the left or right side, the mouthpiece will droop.

  2. The force required to move the joystick is very similar to the original model and is more suitable for users with limited lip muscle strength.

The QuadStick is a mouth operated joystick, with multiple sip & puff sensors, a lip position sensor, and a push switch, connected to a 32 bit ARM processor that converts the sensor inputs into USB and Bluetooth signals for PC's, Game consoles and Android devices.

The QuadStick appears to the host device as a PS3, PS4 or Nintendo Switch compatible Gamepad, Mouse, Keyboard and Flash drive. The connections between the input sensors and the signals sent to the host are configurable by the user and can be changed between pre-configured profiles, while playing a game, to match different stages of the game.

The QuadStick can be used with the XBox One console with a Brooks Super Converter or CronusMax.  The CronusMax can also be used with XBox 360.

A list of all the ways a Quadstick can be connected to consoles and PCs can be found here.

Product brochure
